Name: ASTM A134 Electric-Fusion Arc-Welded Steel Pipe For Structural
Brand: TORICH INTERNATIONAL LIMITED
SKU: ASTM A134
Price: 900.00 USD
Availability: InStock

MOQ:	1 ton
Prijs:	800-1000 USD/Tons
Standaardverpakking:	In bundels of in houten kisten.
Leveringstermijn:	20-30 dagen op producten
Betaalmethode:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringskapaciteit:	60000 ton/ton per jaar

Detailsinformatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

Zhejiang/China

Merknaam

TORICH

Certificering

ISO9001, ISO14001, TS16949

Modelnummer

ASTM A134

Materiaal:

Plaat van koolstofstaal / plaat van laaggelegeerd constructiestaal

Standaard:

ASTM A134 / A134M

Productiemethode:

Elektrisch smeltbooggelast, rechte naad of spiraalnaad

Buitendiameter:

NPS 16 en hoger; gewoonlijk 406,4 mm en groter

Wanddikte:

Tot 19 mm onder ASTM A134-scope; andere diktes in overleg indien conform

Lengte:

1–12 m, vaste lengte op maat verkrijgbaar

Warmtebehandeling:

Zoals normaal gelast; spanningsverlichtend of andere warmtebehandeling in overleg indien nodig

Applicatie positionering:

Constructiestalen buis met een grote diameter die lasbetrouwbaarheid en maatvastheid vereist

Productbeschrijving

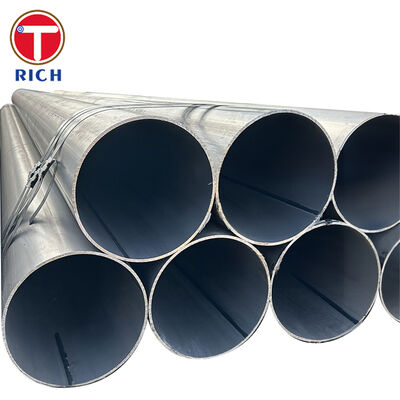

ASTM A134 Electric-Fusion Arc-Welded Steel Pipe For Structural 0

ASTM A134 Electric-Fusion Arc-Welded Steel Pipe for Structural Applications

ASTM A134 electric-fusion arc-welded steel pipe is a large-diameter welded pipe solution for structural applications requiring stable roundness, controlled wall thickness, reliable weld integrity, and flexible dimensional customization. ASTM A134 covers straight-seam or spiral-seam electric-fusion arc-welded steel pipe in NPS 16 and larger sizes, normally with wall thickness up to 3/4 in. [19 mm], while other dimensions may be supplied when they meet the remaining specification requirements. The steel grade is selected according to the ASTM plate specification ordered by the purchaser, making ASTM A134 suitable for structural columns, pipe piles, bridge structures, marine structures, heavy equipment frames, and large fabricated steel assemblies.

Specifications

Item	Description
Material	Carbon steel plate / low-alloy structural steel plate
Standard	ASTM A134 / A134M
Common Grades	ASTM A36, ASTM A283 Grade C, ASTM A285 Grade C, ASTM A572 Grade 50, ASTM A516 Grade 70
Manufacturing Method	Electric-fusion arc-welded, straight seam or spiral seam
Outside Diameter	NPS 16 and above; commonly 406.4 mm and larger
Wall Thickness	Up to 19 mm under ASTM A134 scope; other thicknesses by agreement if compliant
Length	1–12 m, custom fixed length available
Tolerance Range	According to ASTM A134 / project drawing / purchase order
Straightness	Controlled for structural fit-up; project-specific straightness tolerance available
Surface Condition	Bare, black, shot-blasted, primer-coated, anti-corrosion coated, or galvanized by agreement
Heat Treatment	As-welded normally; stress relieving or other heat treatment by agreement when required
Inspection	Visual inspection, dimensional inspection, weld inspection, hydrostatic test or NDT by agreement
Application Positioning	Large-diameter structural steel pipe requiring weld reliability and dimensional consistency

Key Features

Large-diameter capability
ASTM A134 is intended for electric-fusion arc-welded steel pipe of NPS 16 and larger, making it suitable for large structural members where seamless pipe is not economical or dimensionally practical.
Controlled wall thickness range
The standard scope covers wall thickness up to 3/4 in. [19 mm]. Other dimensions can be supplied when agreed and when the pipe complies with the remaining ASTM A134 requirements.
Flexible grade selection
ASTM A134 does not define one fixed steel grade. The final grade is based on the ordered ASTM plate specification, allowing buyers to select A36 for general structures, A572 Grade 50 for higher yield strength, or other plate grades for specific structural or fabrication needs.
Straight-seam or spiral-seam production
The pipe can be manufactured with straight seam or spiral seam welding, allowing different production routes depending on diameter, wall thickness, order quantity, and structural design requirements.
Weld-focused structural reliability
Electric-fusion arc welding provides a full-length welded joint suitable for large structural pipe. For critical projects, weld quality can be verified by ultrasonic testing, radiographic testing, magnetic particle testing, or hydrostatic testing according to the purchase specification.

Our Advantages

Procurement Concern	Practical Risk	Our Solution
Grade selection is often unclear because ASTM A134 is a pipe manufacturing standard, not a single-grade material standard.	The wrong plate grade may lead to insufficient yield strength, poor weldability, or non-compliance with project drawings.	We confirm the design requirement first, then match the pipe with suitable plate grades such as A36, A283 Grade C, A572 Grade 50, A285 Grade C, or A516 Grade 70, with MTC traceability to the ordered plate standard.
Large-diameter welded pipe may show weld misalignment, uneven reinforcement, or poor fit-up.	Poor weld geometry can create fabrication problems during pile splicing, column connection, or structural assembly.	We control edge preparation, forming accuracy, welding parameters, weld appearance, and final dimensional inspection before shipment. NDT can be added according to the project requirement.
Structural pipe buyers often need coating, fixed length, beveling, and documentation in one order.	Multiple suppliers increase coordination time and increase the chance of dimensional or document mismatch.	We can supply pipe cutting, beveling, shot blasting, primer coating, anti-corrosion coating, marking, packing, and inspection documents under one controlled production workflow.

Execution Standards

Standard System	Relevant Standard	Short Description
ASTM	ASTM A134 / A134M	Electric-fusion arc-welded steel pipe, NPS 16 and larger
ASTM	ASTM A36 / A36M	Carbon structural steel plate for general structural use
ASTM	ASTM A283 / A283M	Low and intermediate tensile strength carbon steel plate
ASTM	ASTM A572 / A572M	High-strength low-alloy columbium-vanadium structural steel
ASTM	ASTM A516 / A516M	Carbon steel plate for moderate and lower temperature pressure vessel service
EN	EN 10219	Cold formed welded structural hollow sections
EN	EN 10025	Hot rolled structural steel products
JIS	JIS G3101 / JIS G3106	Rolled steels for general and welded structures
GB	GB/T 3091 / GB/T 9711 / GB/T 700	Welded steel pipe and carbon structural steel references
GOST	GOST 10704 / GOST 10705	Electric-welded steel pipe references

Application Field

Bridge pier casing pipe — ASTM A134 large-diameter EFW steel pipe can be used as bridge pier casing pipe where the structure requires large outside diameter, stable roundness, weld integrity, and reliable load transfer during foundation construction.

Chemical Composition

The following table lists commonly used plate grades that may be ordered for ASTM A134 pipe production. Final chemical composition shall follow the specified plate standard, thickness range, and purchase order.

Grade	C %	Mn %	P %	S %	Si %	Other Elements
ASTM A36	≤0.26	≤1.03	≤0.040	≤0.050	≤0.40	Cu ≥0.20 when copper steel is specified
ASTM A283 Grade C	≤0.24	≤0.90	≤0.035	≤0.040	0.15–0.40	Carbon steel plate for low to intermediate strength structures
ASTM A285 Grade C	≤0.28	≤0.90	≤0.025	≤0.025	As specified by standard / purchase order	Low and intermediate tensile strength carbon steel plate
ASTM A572 Grade 50	≤0.23	≤1.35	≤0.040	≤0.050	≤0.40	Nb, V, or Nb+V according to ASTM A572 requirements
ASTM A516 Grade 70	≤0.22	1.00–1.70	≤0.030	≤0.030	≤0.60	Cu ≤0.30, Ni ≤0.30, Cr ≤0.30, Mo ≤0.08 typical limits

Mechanical Properties

Grade	Yield Strength	Tensile Strength	Elongation	Typical Use in ASTM A134 Pipe
ASTM A36	≥250 MPa	400–550 MPa	≥20% in 200 mm / ≥23% in 50 mm	General structural pipe, columns, supports, frames
ASTM A283 Grade C	≥205 MPa	380–515 MPa	≥22% in 200 mm / ≥25% in 50 mm	Low to moderate strength structural pipe
ASTM A285 Grade C	≥205 MPa	380–515 MPa	≥23% in 200 mm / ≥27% in 50 mm	Welded structural or low-pressure fabricated components
ASTM A572 Grade 50	≥345 MPa	≥450 MPa	≥18% in 200 mm / ≥21% in 50 mm	Higher-strength structural pipe and heavy-load members
ASTM A516 Grade 70	≥335 MPa	510–650 MPa	Thickness-dependent; commonly ≥17–21%	Structural pipe requiring higher tensile strength and improved plate quality

ASTM A134 Electric-Fusion Arc-Welded Steel Pipe For Structural 1

ASTM A134 Electric-Fusion Arc-Welded Steel Pipe For Structural 2

ASTM A134 Electric-Fusion Arc-Welded Steel Pipe For Structural 4

ASTM A134 Electric-Fusion Arc-Welded Steel Pipe For Structural 6

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
